37kw traction motor for 10 ton Russian trolley locomotive

The 37kw DC traction motor is specially designed for Russian mining electric locomotives, and is suitable for K-10 overhead electric locomotives.The 37kw DC motor is designed to operate at altitudes from -1500m to +2000m above sea level, with an ambient temperature of +35 to -40C; 98% relative humidity with moisture condensation at 35C; in the case of methane, the environment is explosion proof , and does not contain corrosive gases and vapors, the concentrations of which would damage the protective coating and insulation of current-carrying parts; the maximum dust content of mine dust is 250 cubic meters.

CJY10 Ton Underground Mining Trolley Locomotive

The 37kw DC traction motor is specially designed for Russian mining electric locomotives, and is suitable for K-10 overhead electric locomotives.

The 37kw DC motor is designed to operate at altitudes from -1500m to +2000m above sea level, with an ambient temperature of +35° to -40°C; 98% relative humidity with moisture condensation at 35°C; in the case of methane, the environment is explosion proof , and does not contain corrosive gases and vapors, the concentrations of which would damage the protective coating and insulation of current-carrying parts; the maximum dust content of mine dust is 250 cubic meters.

Overview video:


motors 1.jpg

motors 2.jpg

motors 3.jpg

motors 4.jpg

motors 5.jpg

motors 6.jpg

motors 7.jpg

shipment and site 18.jpg



Hot Tags: DC motor  |   traction motor  |   37kw motor  |

Power 37KW

Voltage 380/660V

Current 135A

Rotating Speed 1435r/min

Max. Current 270A

Max.Rotation Speed 3014

Structural Type Horizontal

Working rating S2-60min

Excitation Mode Serious Excitation

Excitation Rate 100%

Insulation Grade F

Cooling Type IC40

Weight 400KG

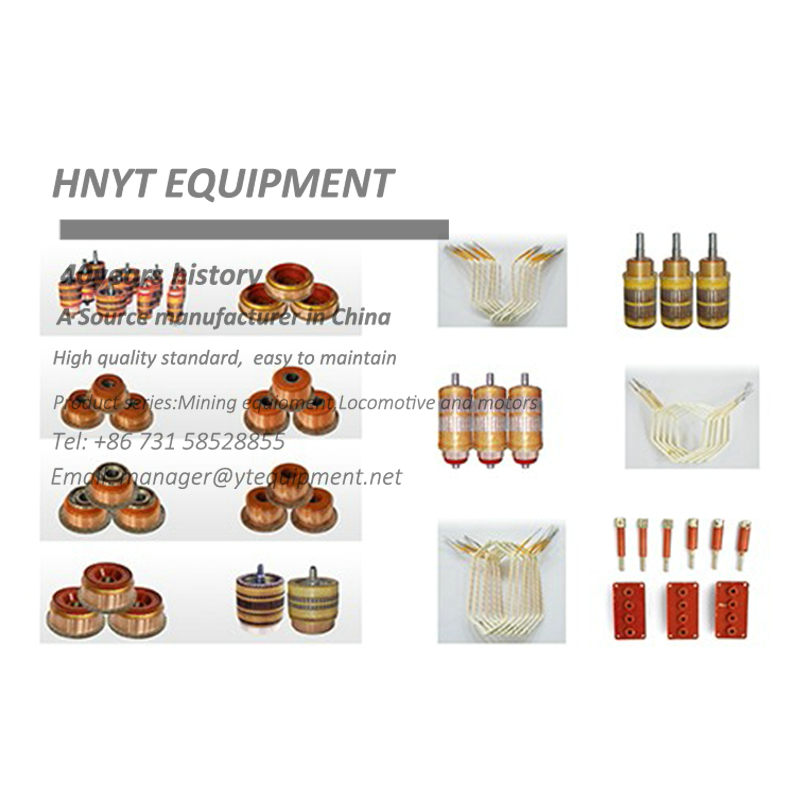

37kw traction motor for 10 ton Russian trolley locomotive(图1)

37kw traction motor for 10 ton Russian trolley locomotive(图2)

37kw traction motor for 10 ton Russian trolley locomotive(图3)
