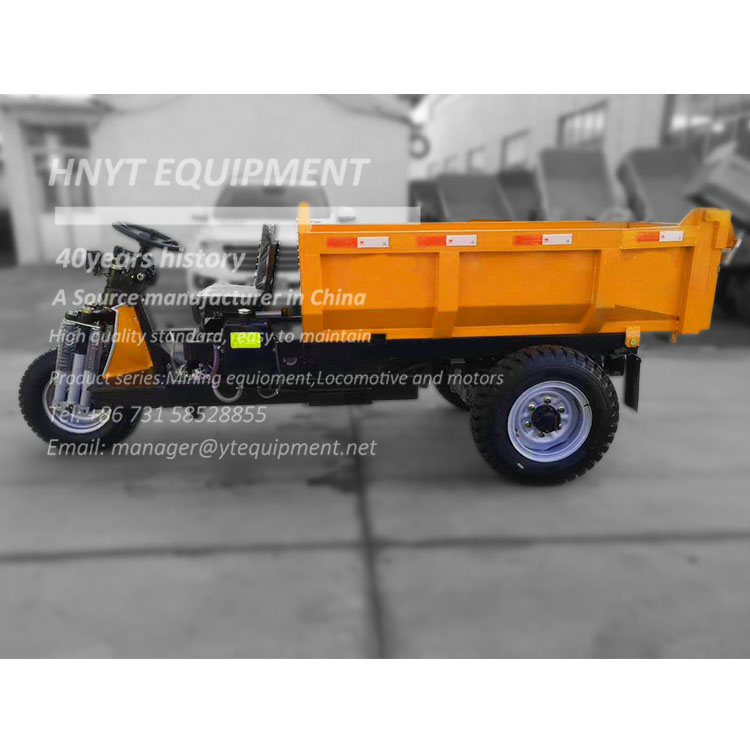

3 ton electric tricycle for mining tunnel

The 3 ton electric tricycle is a heavy-duty electric tricycle built to handle the toughest mining tasks. With a 3-ton load capacity and a robust design, this machine can easily transport construction materials, ore, and other heavy objects.

CJY10 Ton Underground Mining Trolley Locomotive

3 ton electric tricycle for mining tunnel

The 3 ton electric tricycle is a heavy-duty electric tricycle built to handle the toughest mining tasks. With a 3-ton load capacity and a robust design, this machine can easily transport construction materials, ore, and other heavy objects.



Shipment and site details


三轮车展示拼图 2.jpg

三轮车拼图 1.jpg

三轮车拼图 2.jpg

三轮车拼图 3.jpg

三轮车拼图 4.jpg




Product modelUnit800 kg1 TON2 TON3 TON4 TON
Carriage volumem30.6111.21.2
Loading capacityKg8001000200030004000
Unloading heightmm22002250225023502350
Loading heightmm12501250125012501250
Min ground clearancemm≥240≥240≥240≥240≥240
Min turning radiusmm≤4800≤4800≤4800≤4900≤4900
Gradeability (heavy load)≤6≤6≤6≤6≤6
Maximum lift angle of carriage45±245±245±245±245±2
Tyre model
Front tire 450-12
Rear tire 500-14
Front tire 450-14
Rear tire 600-16
Front tire 500-14
Rear tire 650-16 steel wire tires
Front tire 600-14
Rear tire 700-16 steel wire tires
Front tire 600-14
Rear tire 700-16 steel wire tires
Damping system
Front: Damping shock absorber
Rear: 13 thick leaf springs
Front: Damping shock absorber
Rear: 13 thick leaf springs
Front: Damping shock absorber
Rear: 13 thick leaf springs
Front: Damping shock absorber
Rear: 13 thick leaf springs
Front: Damping shock absorber
Rear: 13 thick leaf springs
Operation System
Medium disk (rack and pinion)Medium disk ( turbine )Medium disk ( turbine )Medium disk ( turbine )Medium disk ( turbine )
Light SystemhwFront and rear LED lightsFront and rear LED lightsFront and rear LED lightsFront and rear LED lightsFront and rear LED lights
Max Speedkm/h25km/h25km/h25km/h25km/h20km/h
Motor PowerKw3351010
Cargo demensionmm1700*1000*4001800*1200*4501800*1200*4502200*1380*4502200*1380*450
Container board thicknessmmBottom 2 mm, sides 3 mmBottom 5 mm, sides 5 mmBottom 5 mm, sides 5 mmBottom 5 mm, sides 5 mmBottom 5 mm, sides 5 mm
Voltagev7272727272
Quantities of Batteryea6 blocks, 12v, 100Ah maintenance-free6 blocks, 12v, 100Ah maintenance-free9 blocks, 8v, 150Ah maintenance-free12 blocks, 6v, 200Ah maintenance-free12 blocks, 6v, 200Ah maintenance-free
Demension (L*W*H)mm3160*1070*12603500*1250*12503500*1250*12503800*1380*12503700*1380*1250
Frame
Rectangular tube weldingRectangular tube weldingRectangular tube weldingRectangular tube weldingRectangular tube welding
Main beam 50*140*5mm thickened
WeightKg
1160116013201320
Control system
Smart controllerSmart controllerSmart controllerSmart controllerSmart controller
