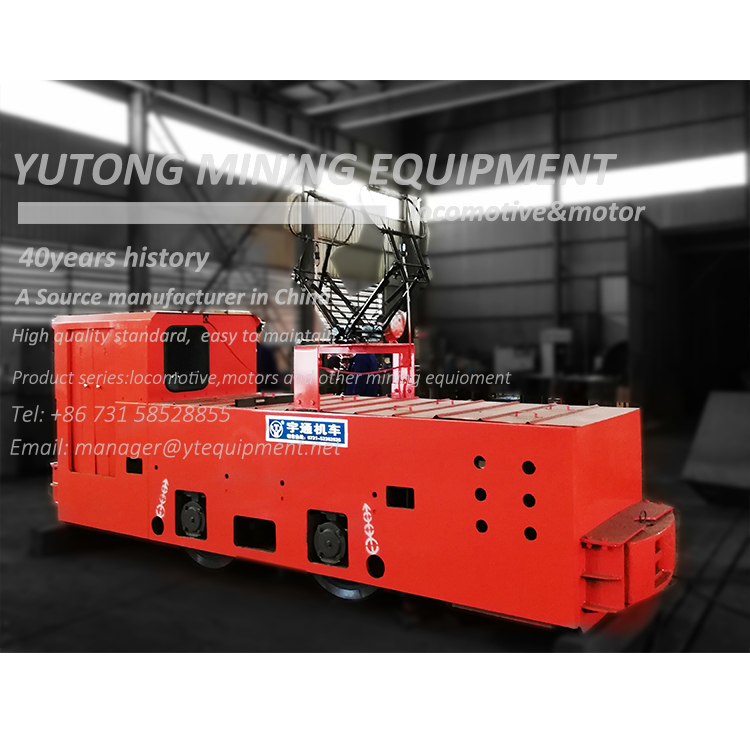

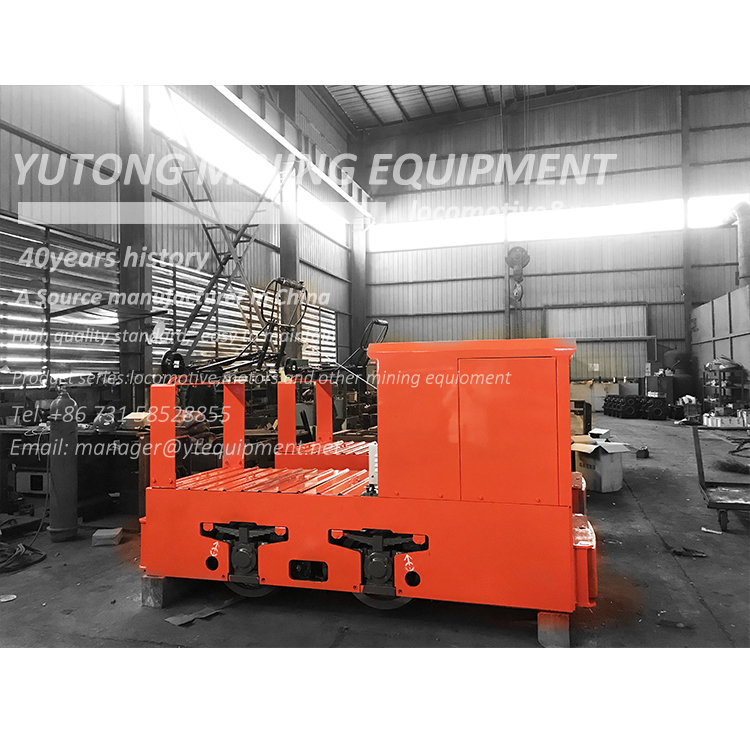

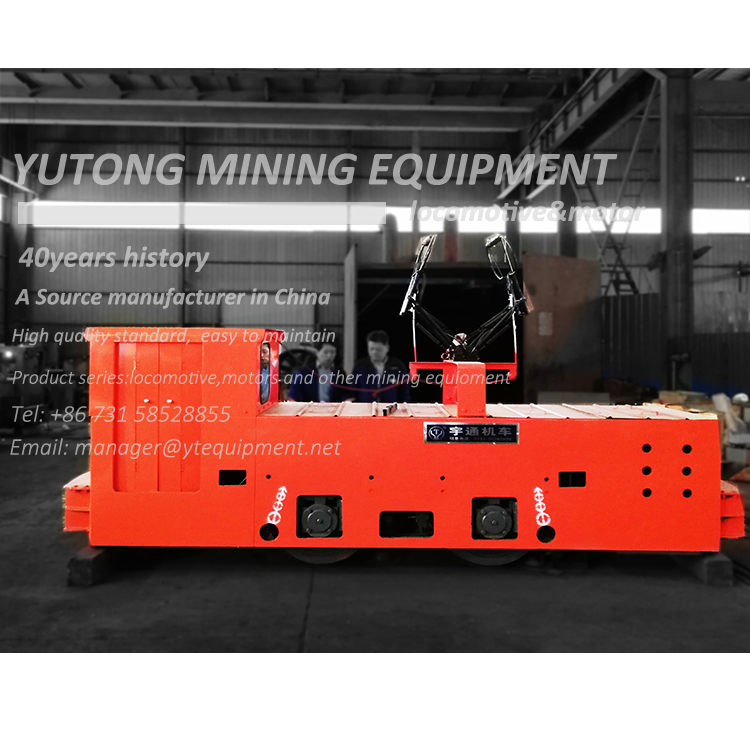

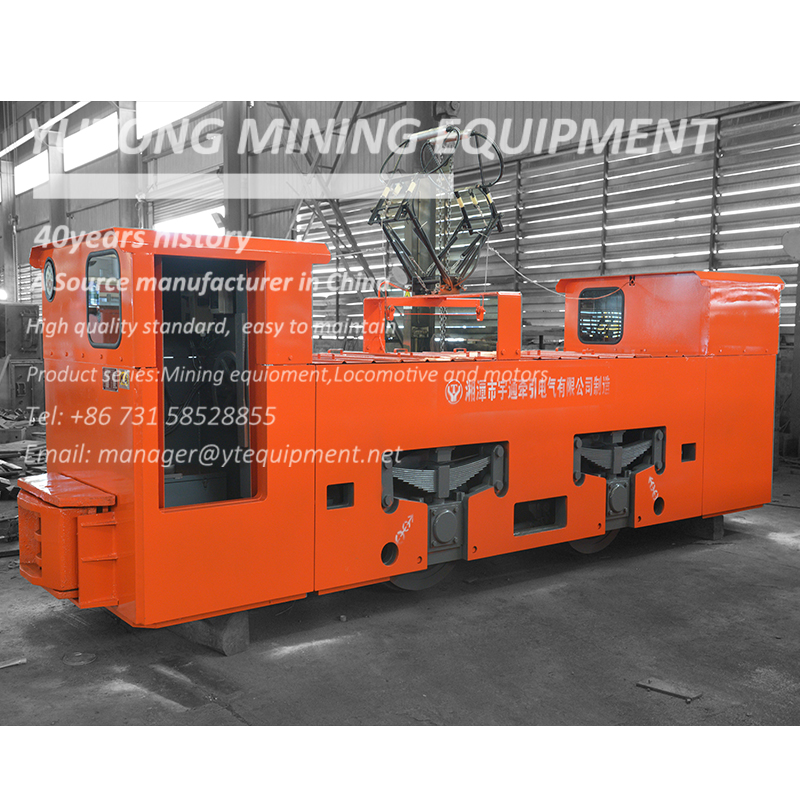

6 Ton Electric Mining Trolley Locomotive

YuTong Underground Mining Electric Locomotives are certified according to European safety standards and meet their requirements.

CJY10 Ton Underground Mining Trolley Locomotive

Mining trolley locomotive is suitable for the main transport roadway of metal mine as the power source of hauling mining car and rickshaw transport equipment.

The 6 ton trolley locomotive working rated voltage of this model is 250V. Equipped of two traction motors two-stage driving of spur gear and bevel pinion the locomotive can work with strong traction force and high speed. Its lateral plate is made of thick steel with good stiffness. Its overloading ability is good. The braking type is mechanical or electric braking. Both mechanical braking and electric braking have safe and reliable effect.

Operation Video:






Hot Tags: 6 ton electric mining trolley locomotive, China, manufacturers, suppliers, factory, customized, price

Specification

Product Name: 6 ton electric mining trolley locomotive

Fuel Type: Electric

Brand Name: YuTong

Traction mode power: 18x2

Dimensions (L x W x H) (mm): 4430*1050*1600mm

Speed (km/h): 10km/h

Application: Mining; Subway Tunnel Locomotive

Rail gauge: 600/762/900mm

Place of Origin: Xiangtan China (Mainland)

Rated voltage: 250V,550V

Advantages: Strong traction force

Braking type: Mechanical and Electric

Service: OEM/ODM

Speed control: Resistor or AC or IGBT
