FBDY Coal Mine Ventilation Counter-Rotating Axial Flow Local Fan

Product features: FBDY series mine explosion-proof press-fit counter-rotating axial flow local fan is a new type of local fan with a wide range of uses. The machine has the characteristics of compact structure, low noise, high wind pressure, high effi

CJY10 Ton Underground Mining Trolley Locomotive

Product features: FBDY series mine explosion-proof press-fit counter-rotating axial flow local fan is a new type of local fan with a wide range of uses. The machine has the characteristics of compact structure, low noise, high wind pressure, high efficiency, good anti-wind performance, stable operation in a small flow area, and a wide range of efficient applications. According to the different ventilation requirements of the length of the working face and the roadway, it can be used in the whole machine and can be used in stages, so as to reduce energy consumption and save energy.

Structural characteristics: The overall shape structure of the FBDY series mine explosion-proof press-in counter-rotating axial flow local fan adopts the front and back of the main unit with muffler device, and the main unit does not have muffler. The main unit could be Counter-rotation ,three -level counter-rotation or four-level counter-rotation, which retaining the advantages of the original counter-rotating fan, both the structure and performance have been optimized.

Main features: The driving motor of the fan and the fan casing are combined into one, the mounting plate for installing the motor and the heat sink and fin of the motor are eliminated,which make the structure is more compact and the flow channel is more smooth. Therefore, the noise is lower and the operating efficiency is higher.

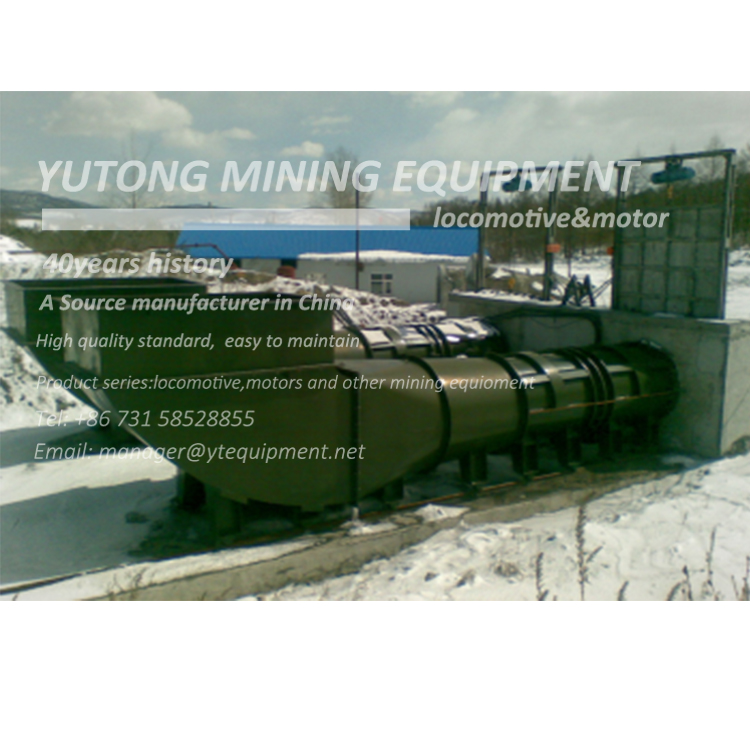

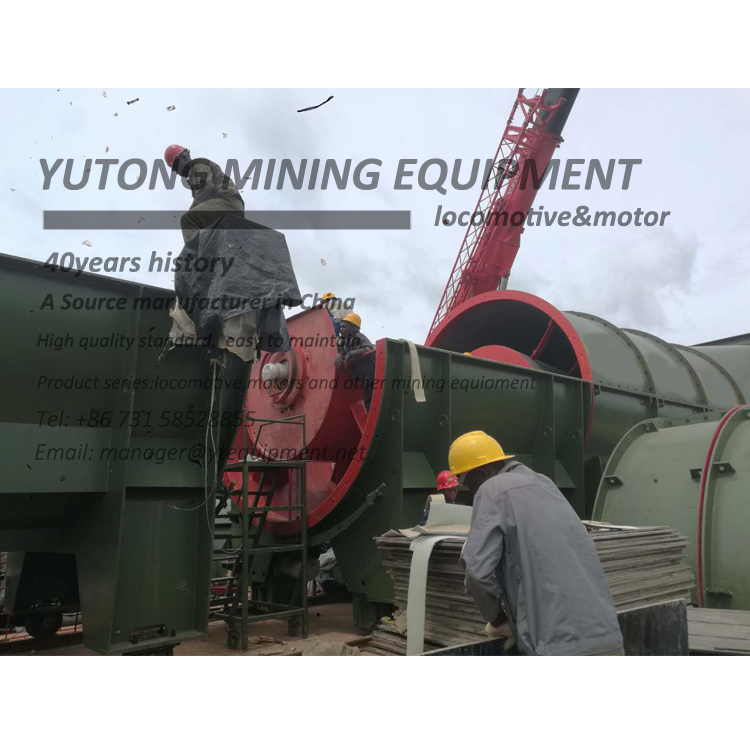

Application cases







Hot Tags:

Technical characteristics:

1. High-performance blade aerodynamic design grade type noise reduction measures etc.

2. The rings and fixed feet are convenient and beautiful.

3. High full (static) pressure efficiency wide range of high-efficiency use with an ideal energy saving effect. Compared with the same model the full (static) pressure efficiency is improved by about 2 percentage points.

4. Low noise: fans with No. 6.0 and below are less than 85 fans with No. 6.0 and above are less than 95.

No. Motor Power (KW) Air Volume
(m3/min)
full pressure(Pa) Maximum full pressure efficiency(%) compared to a sound levels[dB(A)]
No3.5 2×1.1 153~76 250~1500 ≥75 ≤30
3×1.1 153~76 350~2100
4×1.1 153~76 450~2700
No4 2×2.2 220~113 300~1800 ≥75 ≤30
3×2.2 220~113 420~2520
4×2.2 220~113 540~3240
No4.5 2×4 220~150 300~2300 ≥75 ≤30
3×4 220~150 420~3220
4×4 220~150 540~4140
No4.5 2×5.5 240~160 320~3100 ≥75 ≤30
3×5.5 240~160 440~4340
4×5.5 240~160 580~5580
No5.0 2×7.5 300~180 340~3500 ≥75 ≤30
3×7.5 300~180 480~4900
4×7.5 300~180 610~6300
No5.6 2×11 400~200 350~4000 ≥80 ≤25
3×11 400~200
4×11 400~200 630~7200
No6.0 2×15 450~250 440~5100 ≥80 ≤25
3×15 450~250 620~7100
4×15 450~250 790~9200
No6.0 2×18.5 500~250 450~5500 ≥80 ≤25
3×18.5 500~250 630~7700
4×18.5 500~250 810~9900
No6.0 2×22 550~250 450~6000 ≥80 ≤25
3×22 550~250 630~8400
4×22 550~250 810~10800
No6.3 2×30 630~260 460~6300 ≥80 ≤25
3×30 630~260 640~8820
4×30 630~260 830~11340
No6.7 2×37 730~410 920~6500 ≥80 ≤25
3×37 730~410 1200~9000
4×37 730~410 1480~1160
No7.1 2×45 820~550 1480~6650 ≥80 ≤25
3×45 820~550 1480~9130
4×45 820~550 1850~11740
No7.5 2×55 980~630 1850~6800 ≥80 ≤25
3×55 980~630 1850~9240
4×55 980~630 2200~11880
No8.0 2×75 1250~680 2200~7100 ≥80 ≤25
