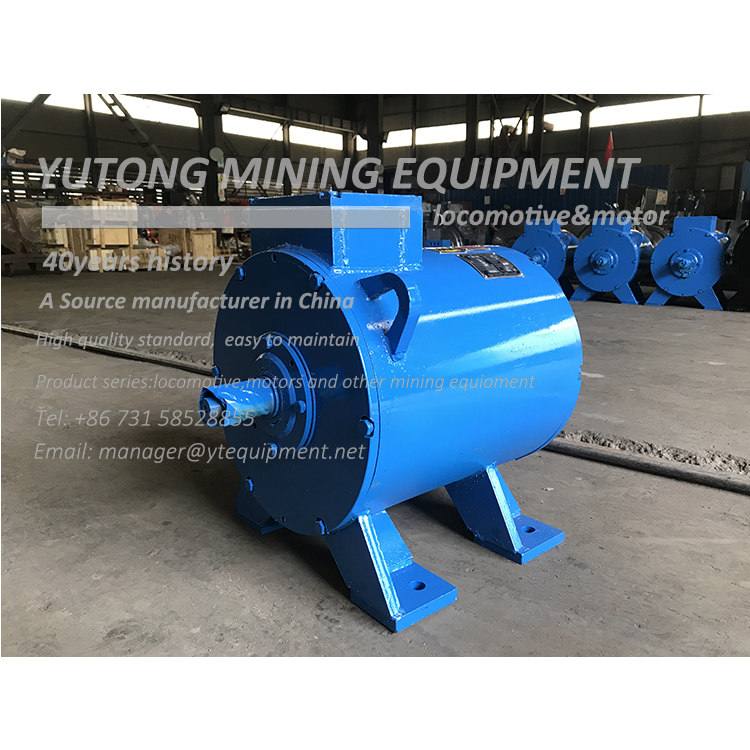

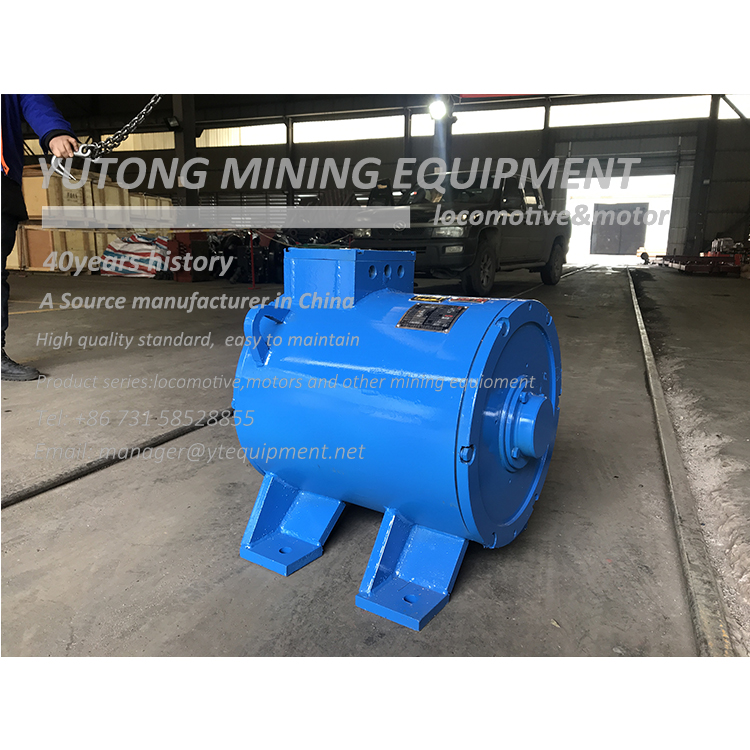

The YVF-22 motor is applied as the driving motor of mining VF AC trolley locomotive of first-stage driving (once of speed variation) of Model CJY7-6.7.9 and CJY10-6.7.9. It has features of simple structure energy conservation maintenance-free smooth
The YVF-22 motor is applied as the driving motor of mining VF AC trolley locomotive of first-stage driving (once of speed variation) of Model CJY7-6.7.9 and CJY10-6.7.9. It has features of simple structure energy conservation maintenance-free smooth operation capability and high efficiency.
Usage Notice
The motor adopts Class F insulation and the temperature rise limit (resistance method) of its stator winding is evaluated according to 155K.
When the motor is at an ambient temperature of 40°C or below the allowable temperature of the rolling bearing (thermometer method) should not exceed 95°C.
Technical Parameters
 | Model | YVF-22Q |
| Working rating | S2-60min | |
| Power kw | 22 | |
| Voltage v | 380 | |
| Current A | 47.3 | |
| Frequency Hz | 40.1 | |
| Speed of rotation r/min | 594 | |
| Insulation grade | F or H | |
| Level of protection | Ip54 | |
| Weight kg | 490 |
