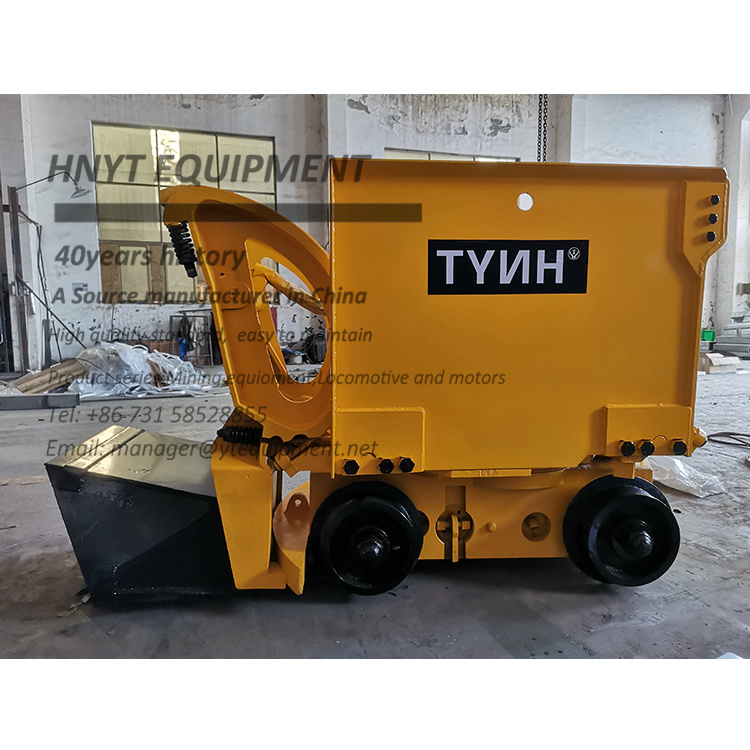

The QZ-30 Air Rock Loader, Pneumatic Rock Loader is a powerful and versatile wheel-type rock shovel engineered for maximum productivity.Its powerful engine and large bucket capacity ensure high performance and efficiency in even the most demanding applications.
The QZ-30 Air Rock Loader, Pneumatic Rock Loader is a powerful and versatile wheel-type rock shovel engineered for maximum productivity.
Its powerful engine and large bucket capacity ensure high performance and efficiency in even the most demanding applications.
Shipment and one site details
| model parameters | ZQ-13 | ZQ-17 | ZQ-26 | ZQW-13 | QZ-17 | QZ-30 | CJQ-15 | CJQ-20 |
| Laneway width*height(m*m) | 1.8*2.5 | 1.7*2 | 2.2*2.5 | 2*2.2 | 1.7*2 | 2.2*2.5 | 1.7*2 | 2*2.2 |
| gauge(mm) | 600/762/900 | |||||||
| Loading Width (mm) | 1910 | 2700 | No limit | No limit | 1050 | |||
| Loading Height (mm) | 1975 | 2240 | 1830 | 1975 | 2380 | 1750 | 1050 | |
| Unloading Height (mm) | 1250 | 1260 | 1250 | 1250 | 1150 | 1450 | 1900 | 380 |
| Bucket Volume (m3) | 0.13 | 0.17 | 0.26 | 0.13 | 0.17 | 0.30 | 0.15 | 0.20 |
| Length (mm) | 2230 | 2230 | 2440 | 1900 | 2250 | 2600 | 2300 | 2690 |
| Width (mm) | 1200 | 1360 | 1380 | 800 | 1490 | 1650 | 1490 | 1630 |
| Height (mm) | 1200 | 1390 | 1500 | 1230 | 1500 | 1500 | 1380 | 1380 |
| Walking motor power (kw) | 9 | 11 | 11 | 9 | 9 | 9 | 9 | 9 |
| Rising motor power (kw) | 9 | 15 | 15 | 15 | 15 | 15 | 12 | 12 |
| Device Totally weight (kg) | 1950 | 2700 | 2700 | 2000 | 3200 | 4200 | 3100 | 3350 |
| Working pressure (mpa) | 0.45-0.86 | 0.45-0.7 | 0.45-0.7 | 0.48-0.86 | 0.44-0.67 | 0.44-0.67 | 0.42-0.7 | 0.5-0.7 |
