Production Introduction

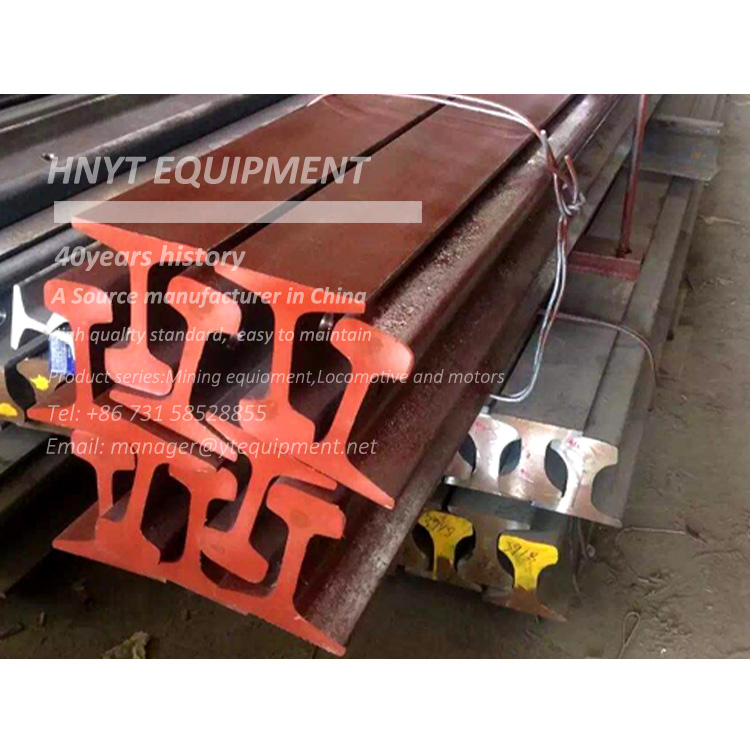

The rail is composed of three parts: head, web, and feet. In order to make the guide rail better bear various forces and ensure the necessary strength conditions, the guide rail should have sufficient height, the size and height of its head and feet should be large enough, and the thickness of the web and feet should not be too thin.
←No Information
| Name | Model | Sectional Dimension(mm) | Theoretical weight | |||
| Height | Bottom Width | Head Width | Web Thickness | |||
| Light Rail | 8Kg/m | 65.00 | 54.00 | 25.00 | 7.00 | 8.42 |
| 12Kg/m | 69.85 | 69.85 | 38.10 | 7.54 | 12.20 | |
| 15Kg/m | 79.37 | 79.37 | 42.86 | 8.33 | 15.20 | |
| 18Kg/m | 90.00 | 80.00 | 40.00 | 10.00 | 18.06 | |
| 22Kg/m | 93.66 | 93.66 | 50.80 | 10.72 | 22.30 | |
| 24Kg/m | 107.00 | 92.00 | 51.00 | 10.90 | 24.46 | |
| 30Kg/m | 107.95 | 107.95 | 60.33 | 12.30 | 30.10 | |
| Heavy Rail | 38Kg/m | 134.00 | 114.00 | 68.00 | 13.00 | 38.733 |
| 43Kg/m | 140.00 | 114.00 | 70.00 | 14.50 | 44.653 | |
| 50kg/m | 152.00 | 132.00 | 70.00 | 15.50 | 51.514 | |
| 60Kg/m | 176.00 | 150.00 | 73.00 | 16.50 | 60.800 | |
| 75Kg/m | 192.00 | 150.00 | 75.00 | 20.00 | 74.640 | |
| UIC54 | 159.00 | 140.00 | 70.00 | 16.00 | 54.430 | |
| UIC60 | 172.00 | 150.00 | 74.30 | 16.50 | 60.210 | |
| Lifting Rail | QU70 | 120.00 | 120.00 | 70(76.5) | 28.00 | 52.8 |
| QU80 | 130.00 | 130.00 | 80(87) | 32.00 | 63.69 | |
| QU100 | 150.00 | 150.00 | 100(108) | 38.00 | 88.96 | |
| QU120 | 170.00 | 170.00 | 120(129) | 44.00 | 118.1 | |
